Flooring in a Dairy Loafing Barn: What Works Best?

Flooring in a dairy loafing barn needs to work for both cows and farm machinery.

Cows need good grip, comfortable resting areas and surfaces that stay as dry as possible. The floor also needs to handle heavy machinery, feeding, manure removal and regular cleaning.

There isn’t one flooring solution that suits every part of a barn. The right approach depends on how each area will be used, the housing system and how the dairy operates.

Start by Dividing the Barn Into Floor Zones

Before choosing flooring materials, consider what happens in each part of the barn.

Area	What the floor needs
Resting and bedding areas	Comfort, dryness and easy bedding management
Feed alleys	Strength and machinery access
Cow standing areas	Good grip, drainage and easy cleaning
Water troughs	Good grip and drainage
Cow crossovers	Good grip and durability
Entry and exit points	Durable surfaces that drain well and reduce mud
Machinery routes	Strength to support heavy machinery

Dairy Australia identifies different dairy housing systems, including concrete feedpads, loose housing, deep-litter and compost bedding.

Each has different flooring requirements depending on how cows use the space and how the area is managed.

The flooring should suit the housing system, rather than choosing a flooring product first and designing around it.

Where Does Concrete Make Sense?

Concrete is commonly used in areas with regular cow movement, machinery traffic and cleaning.

However, the surface finish is just as important as the concrete itself.

Getting the Right Grip

Smooth concrete can become slippery when wet or covered in manure.

Dairy Australia recommends using dimpled or cobbled concrete finishes in dairy yards to provide better grip for cows.

The aim is to give cows secure footing without making the surface so rough that it causes excessive hoof wear.

Watch how cows move through the area. Signs of poor grip may include:

Slipping or taking unusually short steps
Hesitating before turning
Spreading their feet for balance
Avoiding particular routes
Reluctance to enter an area

These behaviours may suggest the floor is too slippery or that cows are struggling to move between different surfaces.

Choosing a Concrete Finish

Textured or patterned concrete needs to provide grip while remaining practical to clean.

The concrete finish needs to work for both cows and machinery and be easy to clean.

In areas shared by cows and heavy machinery, involve your concrete contractor and dairy adviser before the slab is poured. They can help determine a suitable finish for the conditions.

Floor Slope and Drainage

A dairy barn floor needs to move water and effluent away from cow traffic without making standing or walking uncomfortable.

Dairy Australia notes that a 2–3% slope can assist drainage and cleaning in Australian dairy yards.

What does that mean in practice?

Floor slopeFall per metreFall across 10 metres2%20 mm200 mm3%30 mm300 mm

These figures help show how much the floor level changes across a relatively short distance.

However, this doesn’t mean every loafing barn floor should have a 2–3% slope. Feed lanes, resting areas, bedding packs and cow traffic areas may have different requirements.

Work with your civil designer, dairy adviser and effluent consultant to plan the final floor levels and drainage.

Avoiding Low Spots

Even a floor with a suitable overall slope can have low spots that hold water, urine, manure or trough overflow.

These areas can stay wet and become difficult to clean.

Before pouring concrete, check the floor levels, drainage and how it connects to doorways, bedding areas and outdoor yards.

Once the barn is operating, water pooling after cleaning or rainfall may be a sign that drainage isn’t working as intended.

Water Troughs and High-Traffic Areas

Some parts of a barn experience more wear and moisture than others.

Around Water Troughs

Water troughs are busy areas where cows regularly stand, drink and move past one another.

The surrounding floor needs good grip, drainage and enough hardstand to prevent muddy edges.

Dairy Australia also recommends keeping water troughs clean and clearing manure from around them.

Position troughs so cows can drink without blocking the main routes through the barn.

Entry and Exit Points

Entrances, exits and crossovers often experience concentrated cow traffic.

Cows may turn, bunch together or move between concrete and earthen surfaces. Machinery may also use these areas.

Pay particular attention to:

Slippery or worn concrete
Mud forming at slab edges
Uneven surfaces or abrupt changes in level
Water pooling near entrances
Narrow areas that restrict cow movement

The transition between the barn floor and the outside surface matters. Even a well-designed internal floor can become difficult for cows to use if the area immediately outside is muddy or uneven.

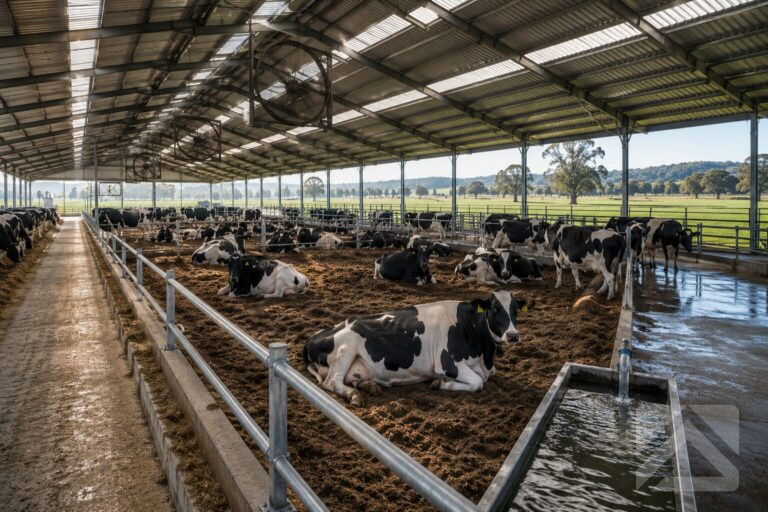

Resting Areas Need a Different Approach

The surface cows walk on doesn’t necessarily need to be the surface they rest on.

Dairy Australia explains that cattle shelters can provide loose bedding for cows to rest on. Deep-litter and compost bedded systems use bedding packs that require regular management.

For these systems, the design needs to consider what sits beneath the bedding and how the area will be maintained.

Consider how deep the bedding will be, how to keep it dry, how machinery will access it and how the bedding will be removed.

Your concrete contractor and engineer should plan the joints, with input from the dairy team to make sure they don’t interfere with daily work.

Compost Bedded Packs Need Machinery Access

Dairy Australia notes that compost bedding generally needs to be turned with machinery at least twice a day to keep air moving through it.

This means machinery needs enough room to move, turn and reach all parts of the bedding area.

Plan column positions and building clearances around the equipment needed to manage the bedding.

Where Concrete Meets Bedding

Where concrete meets loose bedding, the edges need to be well designed.

Poorly planned edges can trap water, spread bedding into feed lanes or create uneven surfaces for cows.

Make sure these areas are easy to clean and allow bedding to be removed. They also need to withstand regular cow movement, cleaning and bedding changes.

Design the Floor Around Cleaning and Effluent Management

Before finalising the floor design, establish how manure and bedding will be removed.

Common cleaning methods include tractor scraping, mechanical scrapers, flushing and periodic bedding removal.

Dairy Australia recommends removing most solid waste mechanically before washing down. This helps reduce the amount of water needed for cleaning.

Plan for the Equipment Being Used

The floor layout should account for:

Scraper direction and blade width
Machinery turning space
Where manure and other solids will be collected
Drain positions
Cleaning frequency
Access around columns and other obstacles

A drain in the wrong location can interfere with scraping every time the barn is cleaned.

Managing Water and Solids

Dairy Australia recommends collecting wastewater from dairy sheds, feedpads and yards in a central system. Traps, filters and screens also need regular cleaning.

Using more water for cleaning puts extra pressure on the effluent system.

Plan the flooring, drainage and cleaning methods together to reduce water use and make manure removal easier.

Where Rubber Flooring Makes Sense

Rubber flooring or mats can help make cows more comfortable when standing for long periods and provide extra grip where needed.

Potential locations include holding areas, high-use standing areas and transitions between different surfaces.

However, rubber doesn’t need to be installed throughout the barn.

Before selecting a product, consider how it performs when wet, how it will be cleaned and how it will withstand regular use.

Edges, joins and fixing methods also matter.

If tractors or loaders will cross the area, check that the selected flooring is suitable for machinery traffic.

Concrete Durability and Joints

Dairy flooring is exposed to more than the weight of cows and machinery.

Manure, urine, feed residues, silage, cleaning chemicals and water can all affect flooring materials over time.

Talk to your concrete supplier and engineer about how the floor will be used and the conditions it will be exposed to.

They can help determine the appropriate concrete specification, reinforcement, joints and surface finish.

This is especially important where replacing the floor would disrupt daily dairy operations.

Why Joint Placement Matters

Concrete slabs require joints, but their location can also affect how the barn operates.

Poorly placed or damaged joints may catch scraper blades, trap manure or create uneven surfaces for cows.

Joint design is the responsibility of the relevant concrete and civil specialists. However, the dairy team should also have input so the joints work with cow routes, machinery movements and cleaning methods.

What About Earth or Compacted Surfaces?

Not every part of a dairy housing system needs concrete.

Dairy Australia considers earth-based feedpads and dry lots suitable in some conditions.

Dry lots are outdoor pens with sloped earth floors. The slope helps manage runoff, while manure is collected and removed as part of the cleaning system.

Whether an earthen or compacted surface is appropriate depends on factors such as:

Soil type
Rainfall and climate
Drainage
Cow traffic
Cleaning methods
Ongoing maintenance

In wet conditions or heavily used areas, an unsuitable earthen surface can quickly become muddy.

Surface selection should reflect the conditions of the site and how the dairy will operate.

What Could a Practical Flooring Plan Look Like?

For a loose-housed dairy loafing barn, the flooring plan might include:

Area	Suggested flooring
Resting area	Loose bedding over a suitable base
Feed standing area	Textured concrete with good drainage
Feed lane	Strong concrete for machinery
Water troughs	Textured concrete with good drainage
Crossovers	Concrete with good grip for turning cows
Entry and exit points	Strong, well-drained surfaces extending outside the barn
Effluent collection	Sloped floors that direct wastewater into the effluent system

This is a general guide. The best flooring will depend on the type of dairy housing, site conditions and how the barn is managed.

What Should You Inspect Once the Barn Is Operating?

Flooring performance can change with regular use.

Routine inspections should look at how cows move through the barn and how well the surfaces are holding up.

Cow movement: Are cows slipping, hesitating or avoiding particular areas?

Surface condition: Is concrete becoming polished, cracked or uneven? Are mats or joints damaged?

Drainage: Are there areas where water regularly pools or drains slowly?

Cleaning: Can machinery reach the areas it needs to? Is manure accumulating in the same locations?

If the same area continues to cause problems, it may indicate an issue with the floor design rather than the cleaning routine.

Who Should Be Involved in Dairy Barn Flooring Decisions?

Flooring affects cow comfort, cleaning, drainage and machinery access. It is worth involving the right specialists early.

Dairy adviser: Housing system, cow movement and daily operations.

Veterinarian or hoof-health adviser: Cow comfort, grip and lameness considerations.

Civil engineer: Floor levels, drainage, slab design and associated infrastructure.

Dairy effluent consultant: Manure, wash water and effluent collection.

Concrete contractor: Surface finishes, jointing and construction methods.

Structural engineer: Interfaces between the floor, building foundations, columns and structural loads.

Each specialist brings a different perspective. Getting their input early can help avoid conflicts between the building design and how the dairy needs to operate.

Where TechSpan Fits

TechSpan designs and builds the structure, working with the project team to make sure the building layout suits the flooring, drainage and daily dairy operations.

Our 3C Advantage helps bring these requirements together from the start.

Concept

We work with you to understand how the barn will operate, including cow movement, feeding, bedding and machinery access. This helps shape the building layout.

Configure

We develop the structural design, considering column positions, building clearances and how the structure connects with the planned flooring and drainage.

Construct

We manufacture and build the structure to the agreed design, working with the wider project team throughout construction.

Flooring and effluent systems are designed by the relevant specialists. Our role is to make sure the building works alongside these systems.
