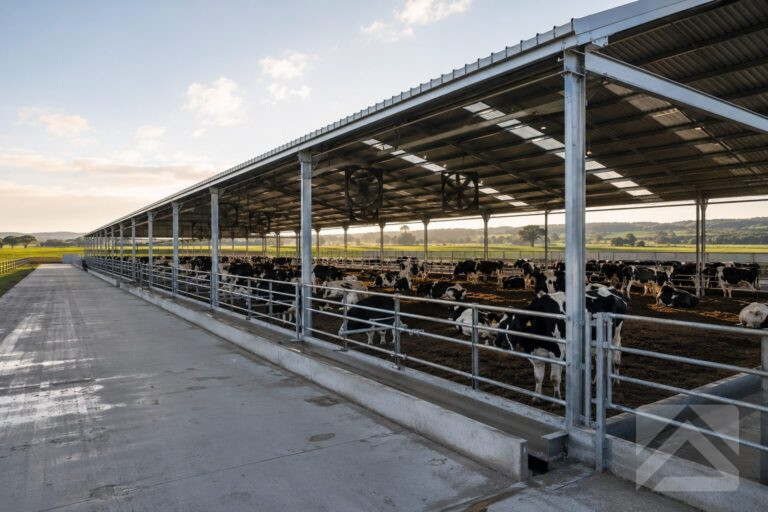

Dairy Loafing Barn Design: Planning Cow Flow, Access and Layout
A well-designed dairy loafing barn should make the dairy easier to operate, not simply give cows somewhere to stand under cover.
The layout needs to work with the herd’s daily routine: moving to and from milking, feeding, drinking, resting and returning to the paddock or barn. At the same time, staff and machinery need practical access for feeding, bedding, cleaning and maintenance.
That’s why the operating system comes before the structural dimensions.
If you’re earlier in the planning process, our dairy loafing barn guide is a useful starting point. Here, we’re looking more closely at how cow movement, machinery and day-to-day operation can shape the physical layout of the building. Pasted text
Start With the Dairy Operation
Two barns housing the same number of cows can need very different layouts.
A seasonal loafing barn connected to a grazing system is different from a facility where cows spend much longer periods under cover. Feeding inside changes the layout again, as can bedding, water, cow grouping and milking frequency.
So herd numbers are only part of the picture. We also want to know how many cows will use the barn at one time, how long they’ll be there and what needs to happen while they’re under cover.
Dairy Australia recognises a range of dairy systems, from predominantly grazing operations through to partially and fully housed systems. It’s Feeding & Housing Infrastructure resources provide more detailed guidance on the different approaches.
The barn should suit the dairy system, rather than forcing the dairy to work around a generic building. Pasted text
Map Cow Flow Before the Building Layout
Where are cows coming from when they enter the barn? Where are they heading when they leave? How do they move between the dairy, water, feed, resting areas and paddocks?
We also want to understand where cows may need to turn, queue, cross another group or move through a narrow point.
A layout that looks logical on a drawing can become frustrating if cows repeatedly cross vehicle routes or have to move against the normal flow of the herd.
Your existing dairy layout can tell us a lot here. Bring us what you have and show us how cows currently move through the operation. We can start from there. Pasted text
Keep Cow and Machinery Routes Separate Where Possible
A loafing barn can require regular machinery access for feeding, bedding, cleaning, manure removal and maintenance.
Those movements need to work alongside cow traffic without constantly competing for the same space.
Rather than allowing a generic amount of “machinery access”, it’s more useful to know what equipment you actually use. A mixer wagon, tractor or loader has its own width, height and turning requirements.
Knowing the actual equipment means we can allow the right space for it from the start.
Where practical, separating frequent vehicle routes from major cow movement paths can also make the facility easier to operate day to day. Pasted text
Design Around the Housing and Bedding System
“Loafing barn” can describe several different arrangements.
Dairy Australia distinguishes between cattle shelters, deep-litter loose housing, compost bedded pack barns and freestall housing. These systems have different management requirements and shouldn’t be treated as interchangeable. Pasted text
For example, a compost bedded pack needs machinery access so the bedding can be mechanically aerated. Deep-litter systems need practical ways to bring bedding in and remove used material. Other housing systems may have more defined feeding, resting or traffic areas.
Your dairy advisers can help establish the housing and bedding approach. We use those requirements to help shape the building around the way the system needs to operate.
Position Water Around Cow Movement
Water points can become important organising elements within a loafing barn.
Milking creates periods of concentrated water demand, and Dairy Australia notes that cows commonly drink after milking. Its stock water guidance provides detailed recommendations covering water demand, trough access, flow rates and supply.
For the building layout, position matters.
A trough can have adequate capacity and still create problems if cows have to move against the main flow of traffic to reach it, or if its position contributes to congestion and persistently wet conditions.
TechSpan doesn’t design the dairy’s water system, but we do need to understand where that infrastructure will sit so the building works around it. Pasted text
Ventilation Starts With Building Geometry
An open-sided building doesn’t automatically guarantee good airflow.
Building width, eave height, roof pitch, ridge openings, sidewall openness and orientation can all influence natural ventilation. Nearby buildings, vegetation and internal obstructions can affect it too.
This becomes increasingly important as buildings get wider or cows spend longer periods under cover.
Dairy Australia’s heat-stress guidance identifies ventilation, shade, fans and sprinklers among the measures that can help dairy cows manage hot conditions. Pasted text
On some sites, natural ventilation may form the basis of the approach. Others may require fans or additional cooling infrastructure, determined with the relevant dairy or ventilation specialist.
If mechanical systems are likely, knowing early means loads, mounting positions, clearances and other structural requirements can be considered before the building is finalised.
Design Feed Access Around the Equipment You Use
If cows will be fed inside the barn, feeding can become one of the main organising elements of the layout.
We need to understand where the feed lane sits, how the ration is delivered, where cows access it and what equipment needs to move through the space.
The turning requirements of the actual mixer wagon or feed vehicle are more useful than a standard allowance for machinery.
For a barn used primarily for loafing, feeding infrastructure may be relatively simple. In a more contained system, it can have a much greater influence on how the building is configured. Pasted text
Keep Resting Areas Out of Traffic Routes
A resting area needs to remain somewhere cows can actually rest.
If it doubles as a machinery route, major crossover or bottleneck between feed and water, the layout can work against what the space is there to provide.
The exact space and bedding requirements will depend on the housing system and management approach. For the building, we need to understand where the resting area sits, how cows enter and leave it and what machinery needs access for bedding management.
Working through those movements early gives us much more flexibility than trying to solve them after the structure has been laid out. Pasted text
Bedding and Manure Management Affect the Layout
Bedding has to get into the barn, be managed while it’s there and eventually come back out.
Manure and effluent need their own management pathway.
Those processes can influence machinery access, floor levels, drainage and how clean and dirty water are separated around the facility.
Dairy Australia’s National Feedpad & Contained Housing Guidelines provide more detailed guidance around contained housing, including animal welfare, productivity and environmental management.
TechSpan works alongside the dairy, civil and effluent specialists so the structural solution can accommodate the systems they establish. Pasted text
Keep Clean Roof Water Separate
A loafing barn can create one of the largest clean-water catchments on the dairy.
The basic calculation is simple: 1 mm of rain falling on 1 m² of roof represents approximately one litre of water before losses.
For example, a 6,000 m² roof receiving 700 mm of annual rainfall would receive approximately 4.2 million litres, or 4.2 ML, of rainfall over the year before collection losses.
Whether that water is captured, stored, reused or discharged depends on the farm and its wider water-management strategy.
What matters during building design is knowing where it needs to go. Gutters, downpipes and discharge points need to work with the civil and drainage solution rather than creating additional problems around the barn. Pasted text
Pay Particular Attention to Entry and Exit Areas
A barn can remain relatively dry internally while poor conditions develop immediately outside it.
Cow entry and exit points, trough areas, feed crossovers and machinery entrances carry a lot of traffic. Water, manure, surface wear and repeated turning can combine in these areas, creating mud or congestion even when the covered area itself is performing well.
These interfaces are worth identifying early so the building, access and surrounding civil works can be considered together. Pasted text
Make Sure the Building Can Be Maintained
Maintenance access is easy to overlook during early planning.
Gutters, downpipes, water infrastructure, lighting, fans, roofing and drainage systems may all need inspection or servicing over the life of the building.
If a person or machine will need to reach something regularly, it makes sense to think about that before everything around it is built.
Often, practical maintenance access is relatively simple to allow for during Concept and considerably harder to create later. Pasted text
Plan the Layout for Future Expansion
If herd growth is a realistic possibility, it’s worth deciding where the barn could grow before Stage 1 is built.
That doesn’t mean building more than you need now.
It might mean leaving room for future structural bays, considering how a feed lane could extend or making sure access to one end of the building isn’t blocked by other infrastructure.
Future water, effluent, roof drainage and ventilation requirements may also need to be considered with the relevant specialists.
The aim is simply to avoid placing today’s infrastructure directly in the path of tomorrow’s expansion. Pasted text
Bringing the Building and Dairy Requirements Together
A loafing barn brings together more than structural engineering.
Depending on the project, requirements may come from your dairy consultant, nutritionist, veterinarian, effluent specialist, civil engineer or other advisers.
TechSpan works alongside the relevant specialists so those requirements can be considered as the structural solution develops.
You don’t need to have the entire team appointed or every detail resolved before talking to us. Start with what you know about your dairy, your herd and what you want the barn to achieve.
We can work through the building requirements as the concept develops. Pasted text
Where TechSpan Fits
Our role is to turn the operational requirements into a practical structural building solution.
During Concept, we work with you to understand the barn’s role, herd size, site, cow movement, feeding, machinery, bedding, ventilation requirements and future plans. We also work alongside your dairy and project advisers where their requirements need to interface with the building.
During Configure, that information starts shaping the building itself: dimensions, clear spans, column locations, roof form, eave height, ventilation openings, machinery clearances and engineering requirements.
During Construct, TechSpan takes the agreed structural building solution through detailing, manufacture and construction.
That’s our 3C Advantage. The structure comes after we understand how the dairy needs to work, not the other way around. Pasted text
Planning a Dairy Loafing Barn?
You don’t need to come to us with the layout already designed.
Tell us about your herd, how cows move through the dairy, how you plan to use the barn and what you’re trying to improve.
If you have a site plan or existing dairy layout, bring that too. If you don’t have everything worked out yet, that’s fine.
We’ll work with you and your dairy advisers to develop the structural solution around the operation.
