Feed Storage

Hay Sheds Structured To Work

Want to save money by keeping your harvest and feed out of the weather? Our flexible hay shed designs make feed storage a breeze. Whether you are planning a building that is fully enclosed, or partially enclosed, or has no walls at all, we have “got you covered”.

Talk To Our Team To Get A Hay Shed Thats Structured To Work

Whether you need a fully enclosed hay shed, or a cover with open sides, our expert team can ensure it is structured to work.

Before investing in a hay shed there are many options to consider. Our design consultants can help you through the process to ensure the end result is exactly what you’re looking for. Contact us today for a free design consultation.

Large Hay Storage Shed

How Big Should I Build My Hay Shed?

There are four main questions to consider when deciding how big your hay shed needs to be:

  1. What size hay bales do you plan to store? — Do you need to store 8’x4’x3’, 8’x4’x4’ or Round Bales: (4’ x 4’). This will help you determine your total size in conjunction with the number of bales you need to store.
  2. How many bales do you plan to store? — Do you have a lot of hay to store? What is the maximum number of bales you’d expect to have in your shed at one time? This is when it’s best to overestimate a little to ensure you don’t run out of space.
  3. How high can you stack them? — With the existing equipment and machinery you have, how high can you stack the bales? Common shed heights allow for 5 or 6 bales high.
  4. Will the shed fit on the site you want it? — Lastly, but importantly, will a shed big enough to store all your hay fit on the site where you want it placed?

If you’re still unsure of the size hay shed you need, use our handy Hay Shed size calculator to estimate the size.

Customisable Design

Customisable Design

Quality Materials

Quality Materials

Planning Approval Assistance

Planning Approval Assistance

Expert Advice

Expert Advice

Hay Shed Options

Custom Bay Sizes

We can customise the bay spacing in your new hay shed to suit your hay bale dimensions. This ensures no space is wasted. Bay spacings of up to 9m are offered. Portal Spans from 12m up to 50m are all available.

Extra-large Openings

We can remove columns to allow easier access to feed and allow larger vehicles to access your building. We can help you create a shed to suit your business needs.

Custom Wall Configurations

How you set your shed up is completely up to you. Whether you need one open side, open ends or a fully open cover, we can design your hay shed to suit you.

Roof Ventilation

Hay is notorious for producing moisture. Reduce the chance of mould and corrosion to your property with proper air circulation. Our roof ventilation options are excellent at reducing the moisture in your hay shed.

Structural Steel Construction

The structural steel frame of TechSpan hay sheds is stronger and stands up to more bumps than a purlin shed. Read our article on the difference between structural steel and purlin construction for more information.

Building Approval Assistance

The TechSpan Smart Build System is structured to work from planning to completion. We work with you every step of the process to enable you to get the shed you need, including assistance and management of council approvals.

Checkout Our New
Silver Series Hay Sheds

Looking for a high-quality, structural steel hay shed?

These sheds are the same high-quality Aussie built, Aussie steel sheds as our custom sheds, and they’ve been designed based on years of experience building custom hay sheds. We have three base sizes, and you can add bays if you need something bigger.

Do I need Building Approval Or A Permit To Build A Hay Shed On My Farm?

Generally, hay sheds with a total footprint of less than 200m2 will be classified as an exempt development and won’t need council approval. Sheds between 200 and 500m2 will generally be classified as class 10a buildings and will require basic approval, while sheds between 500m2 and 2000m2 total footprint will be classified as a “Farm Shed” class 7b building in the 2019 BCA and will need a more extensive approvals process. Buildings with a floor area above 2000m2 are classified as a “Farm Building” class 7b or class 8 depending on the usage and also require an extended approvals process. However, our expert team and in-house town planner can work with you and your local council to manage the approvals process from start to finish, even on the most complicated building classes. This is all a part of our unique Smart Build System. For more information on the council approvals process, we have put together an article that covers this in more detail, or you can reach out to our expert team. You can also find more information on the building classes and approvals process here

How Much Does A Hay Shed Cost?

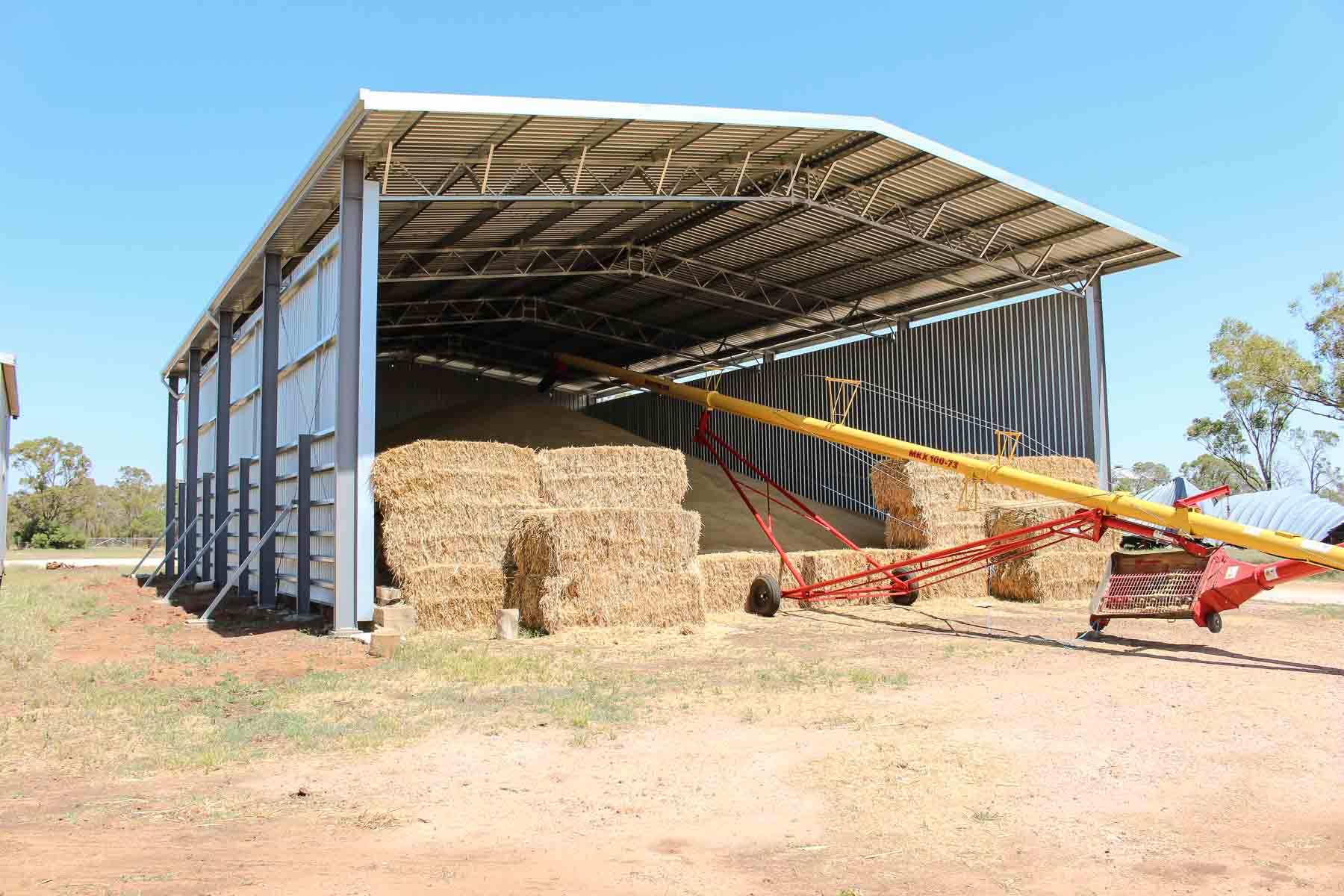

Steel Grain Shed
Large Steel Hay Shed
Triangle Overlay

Well, how long is a piece of string? Depending on the size, location, and special requirements you have, and any extras your hay shed needs the price can vary substantially. If you use our shed size calculator, you can easily submit the details through to our team for a fast, obligation-free estimate.

Try Our Hay Shed Calculator

Recent Rural Case Studies

Custom Designed Multi-Use Farm Shed In Cooplacurripa, NSW.

Rural | Farm Shed

TechSpan worked directly with Strike-A-Light Station to design and manufacture a multipurpose farm shed. The shed had to be suitable for use as offices, machinery and equipment storage,  workshop space… Read The Full Case Study
Full Integrate Farm Storage System Aerial Overview

Integrated Farm Storage System in Ebor, NSW

Rural | Hay Shed

When Wright Pastoral purchased a new property in Ebor, NSW, they contacted TechSpan to design and manufacture a fully integrated farm storage system including a hay shed, a machinery shed,… Read The Full Case Study
Cotton Shed, Carroll

Cotton Shed In Gunnedah, NSW

Agribusiness | Cotton Shed

The client came to us wanting to build a cotton storage shed on an existing slab. We enabled the client to use his existing slab by customising the building width… Read The Full Case Study
